Description

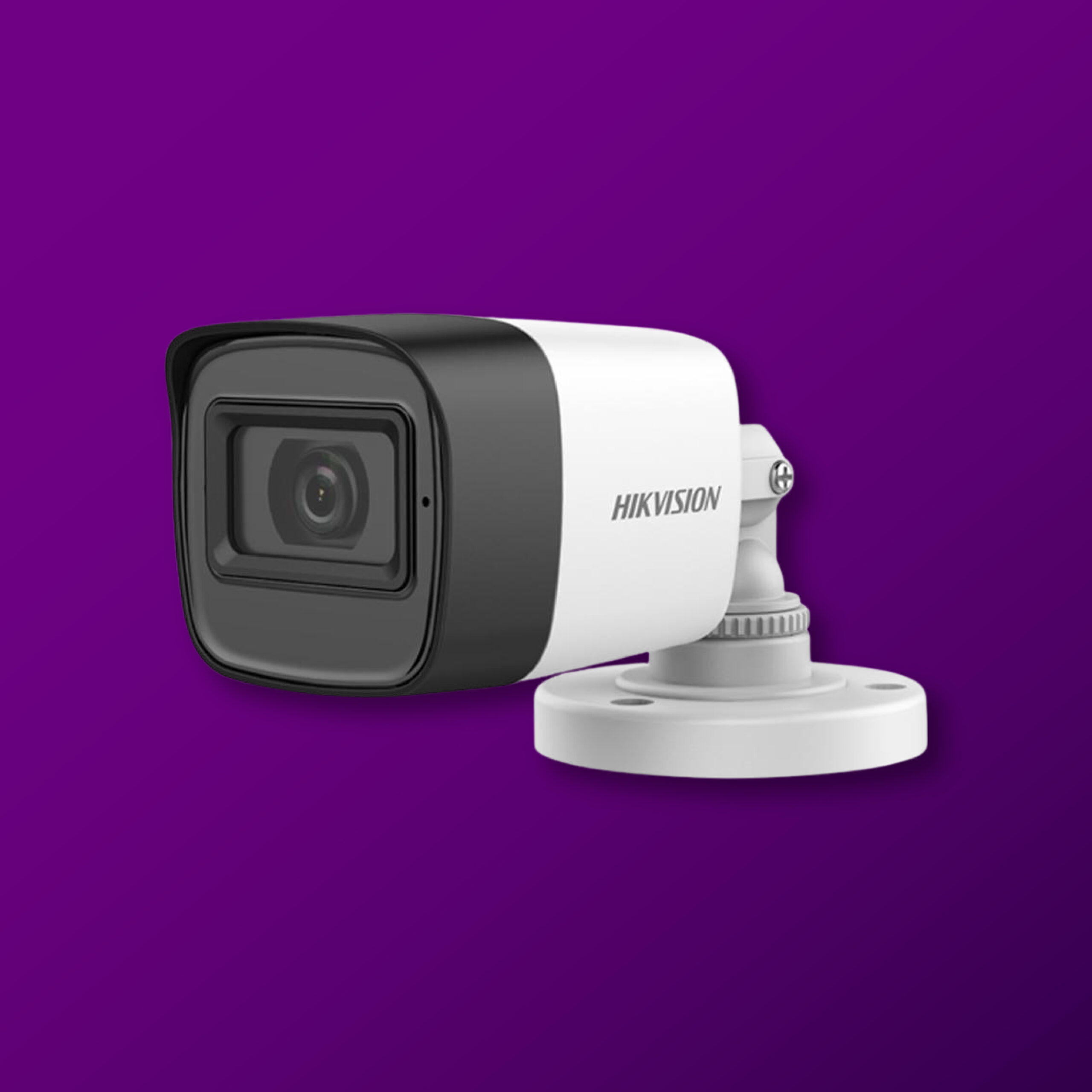

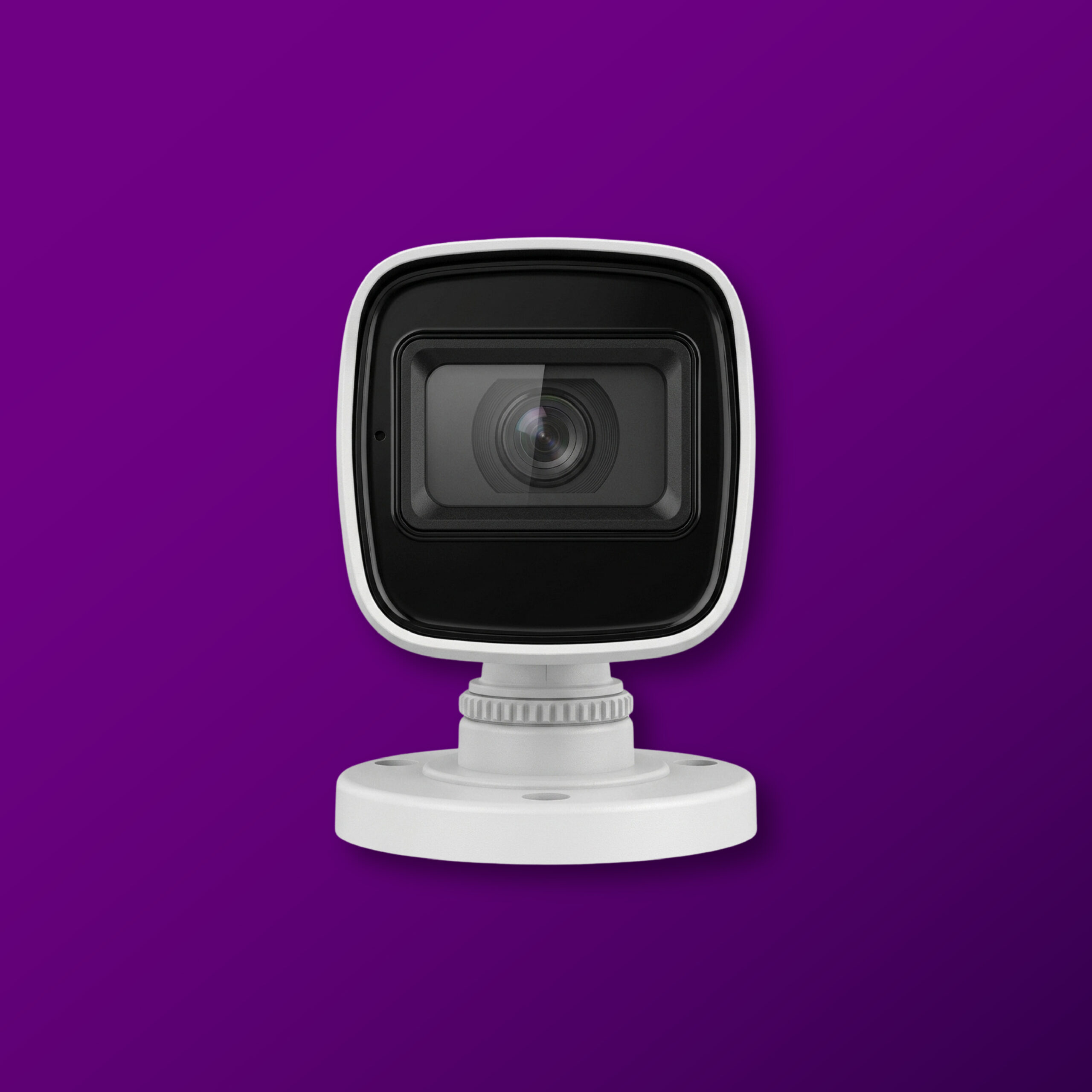

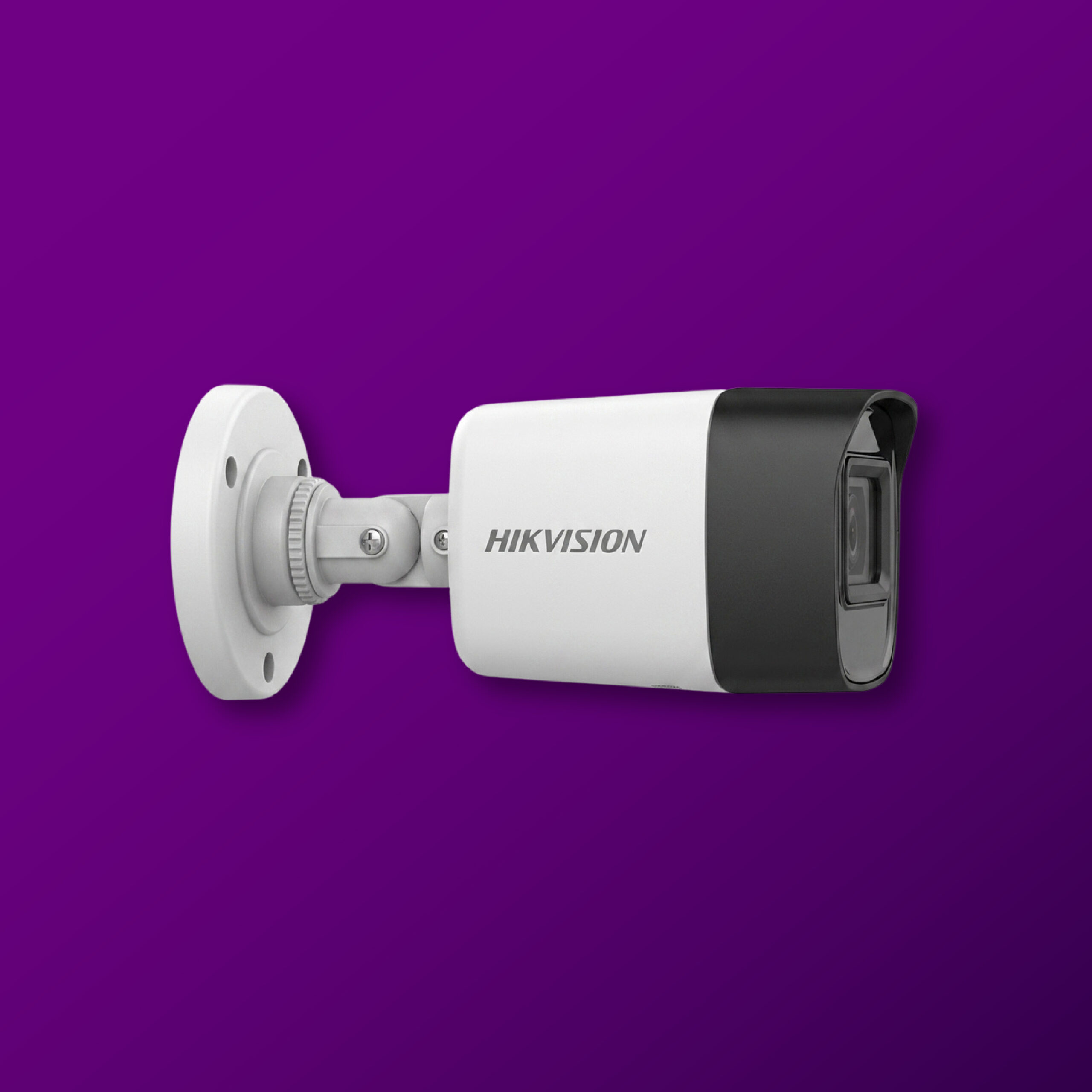

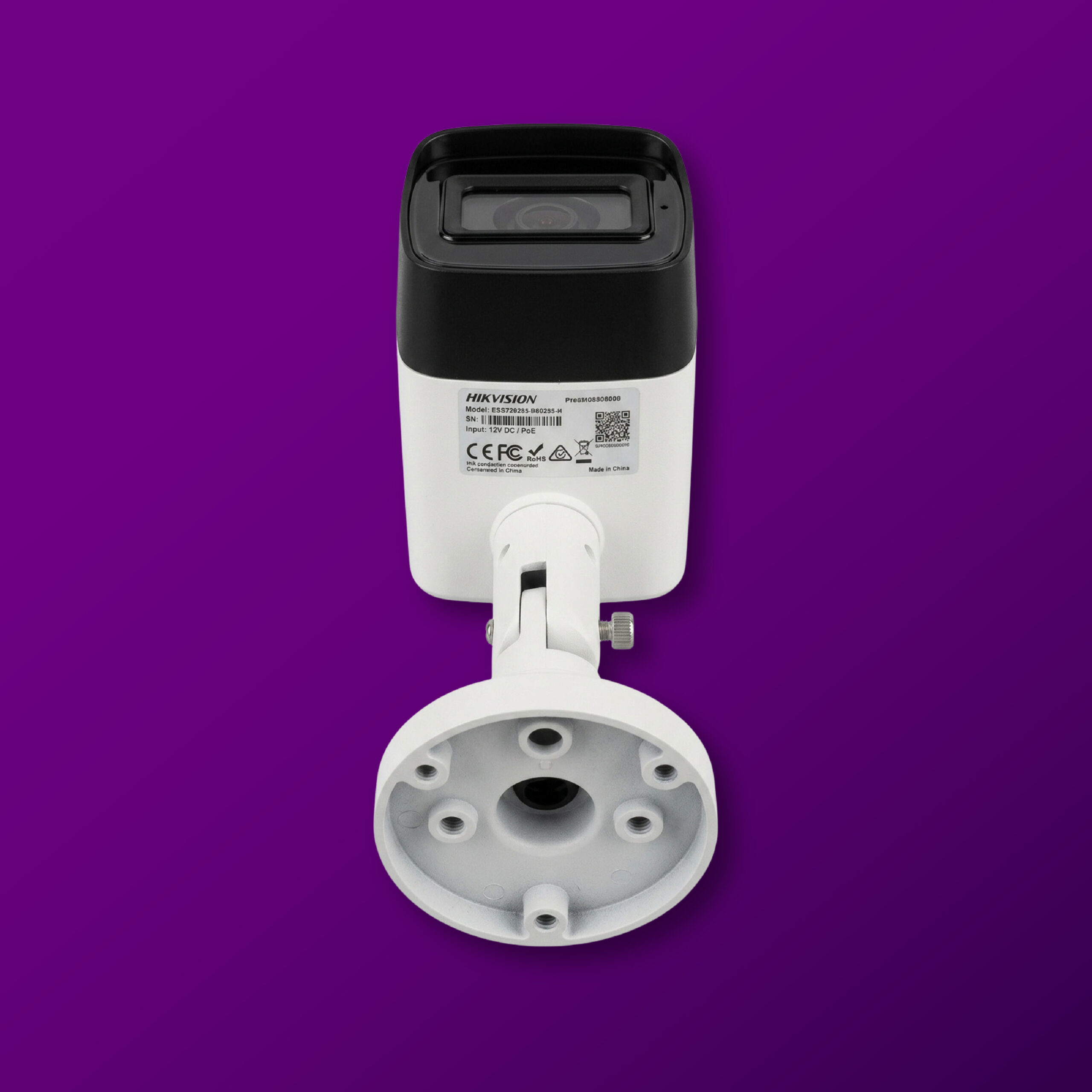

The Hikvision DS-2CE16H0T-ITPF(C) is a compact yet powerful 5 MP Mini Bullet Camera engineered to provide exceptional image quality and dependable performance. Equipped with a 5 MP CMOS image sensor, it captures ultra-clear footage at a maximum resolution of 2560 × 1944, ensuring every detail is recorded with precision.
Designed for both residential and commercial applications, the camera supports multiple fixed lens options (2.4 mm, 2.8 mm, 3.6 mm, and 6 mm), allowing users to select the ideal field of view for their surveillance requirements. Its advanced EXIR 2.0 technology provides infrared illumination up to 25 meters, delivering clear images even in complete darkness.
The DS-2CE16H0T-ITPF(C) supports four switchable video formats—TVI, AHD, CVI, and CVBS—ensuring seamless compatibility with a wide range of DVR systems. Image enhancement features such as Digital WDR, BLC, HLC, and Smart IR help maintain optimal image quality in challenging lighting environments.
Built with an IP67-rated weatherproof housing, this camera is resistant to dust and water, making it suitable for both indoor and outdoor installations. Its flexible mounting design offers 360° pan, 90° tilt, and 360° rotation adjustments for convenient positioning and setup.
Key Features
- 5 MP (2560 × 1944) ultra-high-definition resolution
- EXIR 2.0 infrared technology
- Up to 25 m IR night vision
- Supports TVI, AHD, CVI, and CVBS video outputs
- Multiple lens options: 2.4 mm, 2.8 mm, 3.6 mm, and 6 mm
- Digital WDR, BLC, and HLC image enhancement
- Smart IR for improved nighttime performance
- IP67-rated weatherproof protection
- Flexible mounting with 360° pan and rotation
- Suitable for homes, offices, retail stores, and warehouses
- Compatible with Hikvision and supported analog DVR systems
The Hikvision DS-2CE16H0T-ITPF(C) combines high-resolution imaging, reliable night vision, and durable weatherproof construction, making it an excellent choice for comprehensive security monitoring in any environment.
| Specification | Details |
|---|---|
| Model | DS-2CE16H0T-ITPF(C) |
| Camera Type | 5 MP Fixed Mini Bullet Camera |
| Image Sensor | 5 MP CMOS |
| Maximum Resolution | 2560 × 1944 |
| Minimum Illumination | 0.01 Lux (Color), 0 Lux with IR |
| Lens Options | 2.4 mm / 2.8 mm / 3.6 mm / 6 mm |
| IR Range | Up to 25 m |
| Day & Night | ICR, Auto/Color/BW |
| Video Output | TVI / AHD / CVI / CVBS |
| Frame Rate | Up to 5 MP @ 20 fps |
| WDR | Digital WDR |
| Image Enhancement | BLC, HLC, Smart IR |
| White Balance | ATW / Manual |
| AGC | Supported |
| Angle Adjustment | Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360° |
| Protection Rating | IP67 |
| Material | Plastic |
| Power Supply | 12 VDC ±25% |
| Power Consumption | Max. 4.3 W |
| Operating Temperature | -40°C to 60°C |
| Dimensions | 60.9 × 57.9 × 138.8 mm |
| Weight | Approx. 147 g |
| Communication | HIKVISION-C |
| Optional Accessory | DS-1280ZJ-XS Junction Box |
